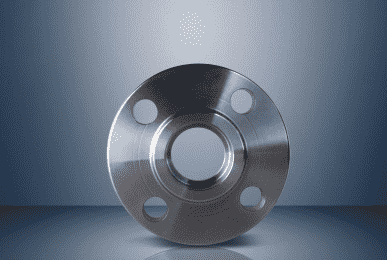

Socket Weld Flanges
Shatrunjay Special Alloy is acknowledged as a manufacturer, exporter & suppliers of
Socket Weld Flanges and Stainless Steel Flanges (Gr. 304, 304L, 316, 316L) available
in a variety of grades, materials, and finishes in both metric and inch sizes. These
Socket Weld Flanges are manufactured using materials such as Carbon Steel, Stainless Steel,
Alloy Steel, Duplex Steel, Inconel, Monel, Hastelloy, and Copper Nickel alloys across
India and Asia, conforming to international flange specifications.
Socket weld flange is similar to the slip-on flange in outline, but the bore is counter-bored
to accept the pipe. These flanges are typically used for smaller diameter high-pressure
piping systems such as hydraulic equipment and steam lines. The pipe is inserted into the
socket end and attached by applying a fillet weld around the hub of the flange. This allows
for a smooth bore and improved fluid or gas flow inside the pipe. An optional internal weld
may also be applied in high-stress applications.
- Designed for small diameter high-pressure piping systems
- Provides smooth bore for better fluid flow
- Strong fillet weld connection around flange hub
- Commonly used in hydraulic and steam systems
- Available in stainless steel, carbon steel & special alloys
