Valves

Valves are critical components used to control, regulate, and direct the flow of fluids in piping systems. They ensure safe operation, precise flow control, and efficient performance across industrial and commercial applications.

Valves

Shatrunjay Special Alloy has been serving as a Valve Exporter since the last two decades. Along with the Indian market, we have expanded our supplies to international markets as well. To achieve first-class precision and deliver world-class products, we continuously work with advanced technologies and modern manufacturing methods.

Valves are used to serve a variety of objectives in various industrial sectors. Selecting the right valve can determine the success or failure of a piping system. They play a vital role in ensuring safe, efficient, and controlled system operations.

For a valve to be superior in quality, it must be resistant to cracks and leakages. At Suraj Steelmet, we thoroughly inspect the quality of raw materials before processing. Our experienced team works closely with clients to understand their specifications before proceeding with production and export.

Specification	Details
Size	¼” to 36”
Material	Cast Iron, Cast Steel, Forged Steel, Stainless Steel, Brass etc.
Type of End Connection	Flanged, Threaded, SW, BW, RTJ, Wafer
Standard	MSS, API, DIN, BS, JIS, NF

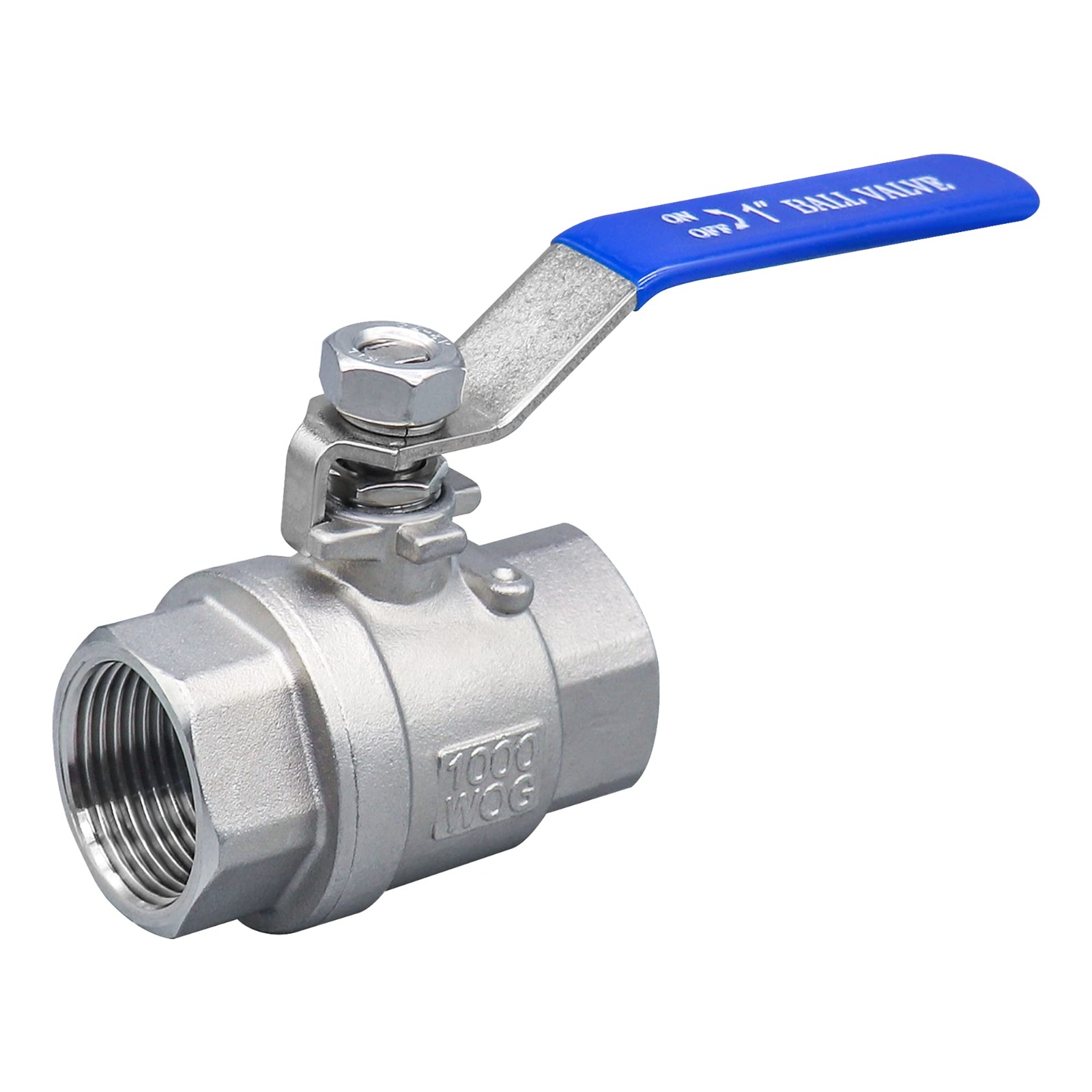

Ball Valve

The design of a ball valve includes a quarter-turn spindle, ball, and handle. The spindle is connected to the ball inside the valve, and the handle indicates the valve’s position — whether it is open or closed.

When the valve is open, the handle remains aligned with the pipe direction, and when closed, it becomes perpendicular to the pipe. Ball valves are highly durable and strong, making them ideal for shut-off applications in industrial systems.

Design Standard	BS 5351 / API 6D / BS EN ISO 17292
Bore / Port	Full Bore / Reduced Bore
Features	3 Piece / 2 Piece / Single Piece Ball Valve, Trunnion Mounted / Floating Ball
Testing Standard	API 598, ISO 5208
Pressure Rating	150# to 1500#
Size	½" to 2" Screwed / Socket Weld \| ½" to 12" Flanged / Butt Weld
Material of Construction	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Manual / Pneumatic / Electrical

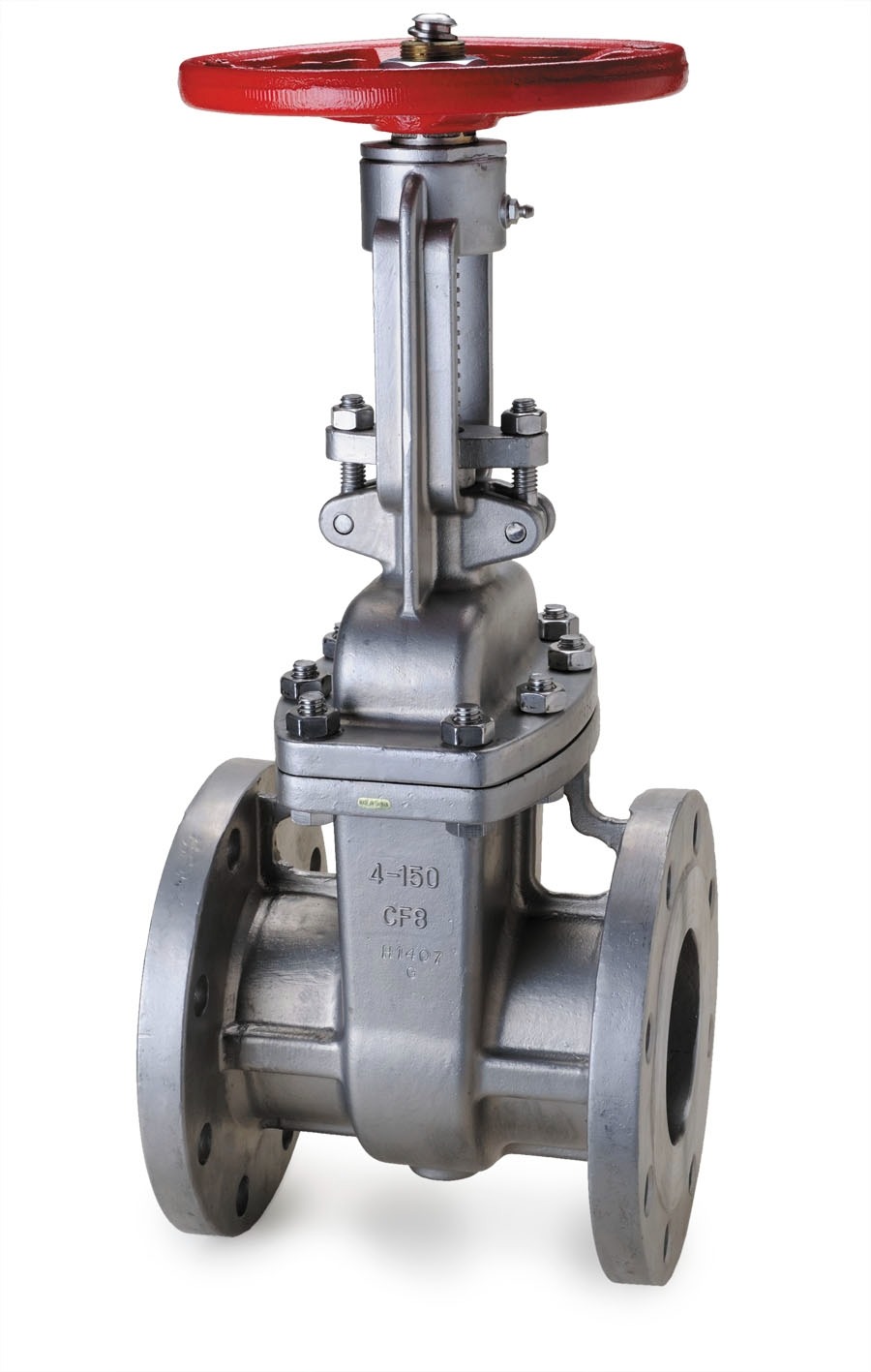

Gate Valve

The operation of the gate valve gives it its name. This valve works like a gate to either stop or allow the flow through the pipeline. It operates in a fully open or fully closed position, which results in minimal pressure drop.

Gate valves are commonly used for applications involving the flow of liquids and gases. The valve is opened by lifting the wedge out of the flow path. These valves are suitable for hot tapping and pigging applications but are not recommended for throttling purposes.

Design Standard	API 600 / BS 1414 / API 603 / API 6D
Features	Bolted Bonnet, OS & Y Construction, Flexible Wedge / Solid Wedge, Renewable Seat / Welded Seat Ring
Testing Standard	API 598
Pressure Rating	150# to 1500#
Size	½" to 2" Screwed / Socket Weld \| ½" to 24" Flanged / Butt Weld
Material of Construction	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Manual / Pneumatic / Electrical

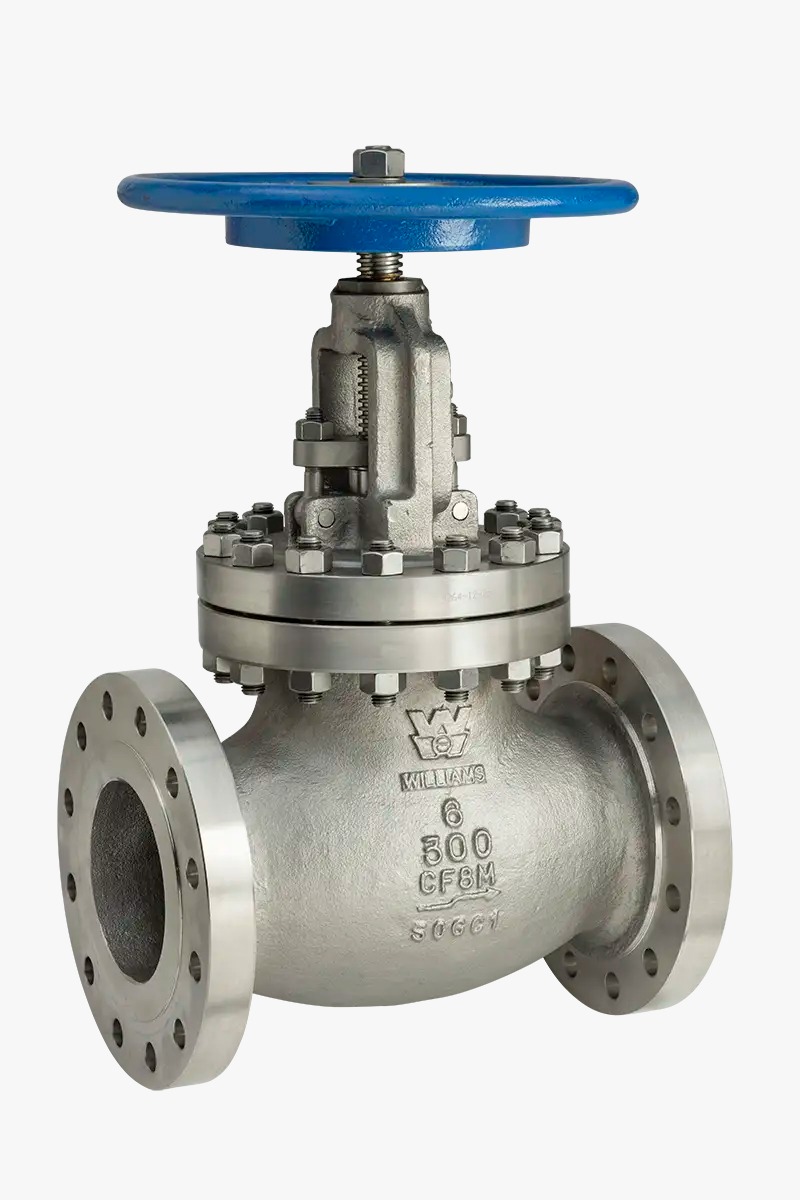

Globe Valve

The globe valve is named after its rounded body shape. These valves are widely used for regulating flow in pipelines and are ideal for controlling gases and liquid flow applications.

Suraj Steelmet is a trusted exporter of high-quality valves, including globe valves. Before initiating production, we carefully evaluate several factors that influence valve performance, ensuring the best balance between operational requirements and system limitations.

Design Standard	BS 1873 / API 602
Features	Bolted Bonnet, OS & Y Construction, Plug Type Disc, Bottom Seated Seat Ring, Renewable Seat Ring
Testing Standard	API 598
Pressure Rating	150# to 1500#
Size	½” to 2” Screwed / Socket Weld \| ½” to 24” Flanged / Butt Weld
MOC	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Manual / Pneumatic / Electrical

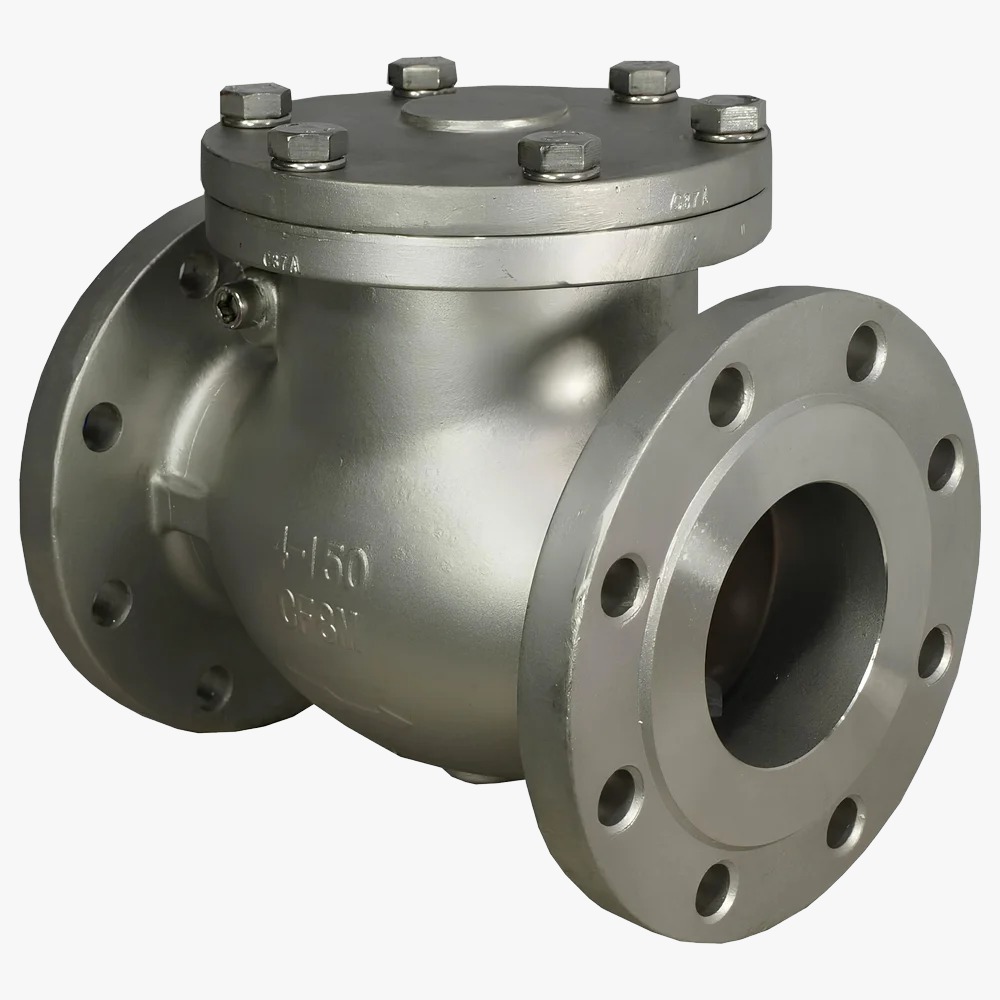

Swing Check Valve

Check valves are two-port valves with openings on both sides. A swing check valve allows fluid to flow in only one direction. Fluid enters from one side and exits from the other, ensuring controlled and efficient flow within the system.

These valves operate automatically and do not require manual assistance to open or close. Due to their unidirectional functionality, they automatically prevent reverse flow or backflow. At Suraj Steelmet, we maintain a ready inventory of high-quality swing check valves at competitive prices.

Design Standard	API 6D / BS 1868
Features	Bolted Cover, Swing Type Disc
Testing Standard	API 598
Pressure Rating	150# to 1500#
Size	½" to 24" Flanged Ends / Butt Weld Ends
MOC	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Automatic

Lift Check Valve

Lift check valves are a type of check valve that operate based on the pressure difference between the upstream and downstream sides. When the inlet pressure is higher, the disc lifts from its seat and allows fluid to flow to the outlet side.

If the downstream pressure or gravity becomes higher than the inlet pressure, the disc returns to its seat, preventing reverse flow. For smooth operation, a durable and precisely manufactured disc is essential. At Suraj Steelmet, we carefully examine the raw materials used in production to ensure high durability and reliable performance.

Design Standard	BS 5352
Features	Bolted Bonnet / Cover, Integral Conical Backseat, “T” Head Stem
Testing Standard	API 598
Pressure Rating	800# to 1500#
Size	½" to 2" Threaded End / Socket Weld End / Butt Weld End
MOC	Forged Carbon Steel / Stainless Steel / Alloy Steel
Operation	Automatic

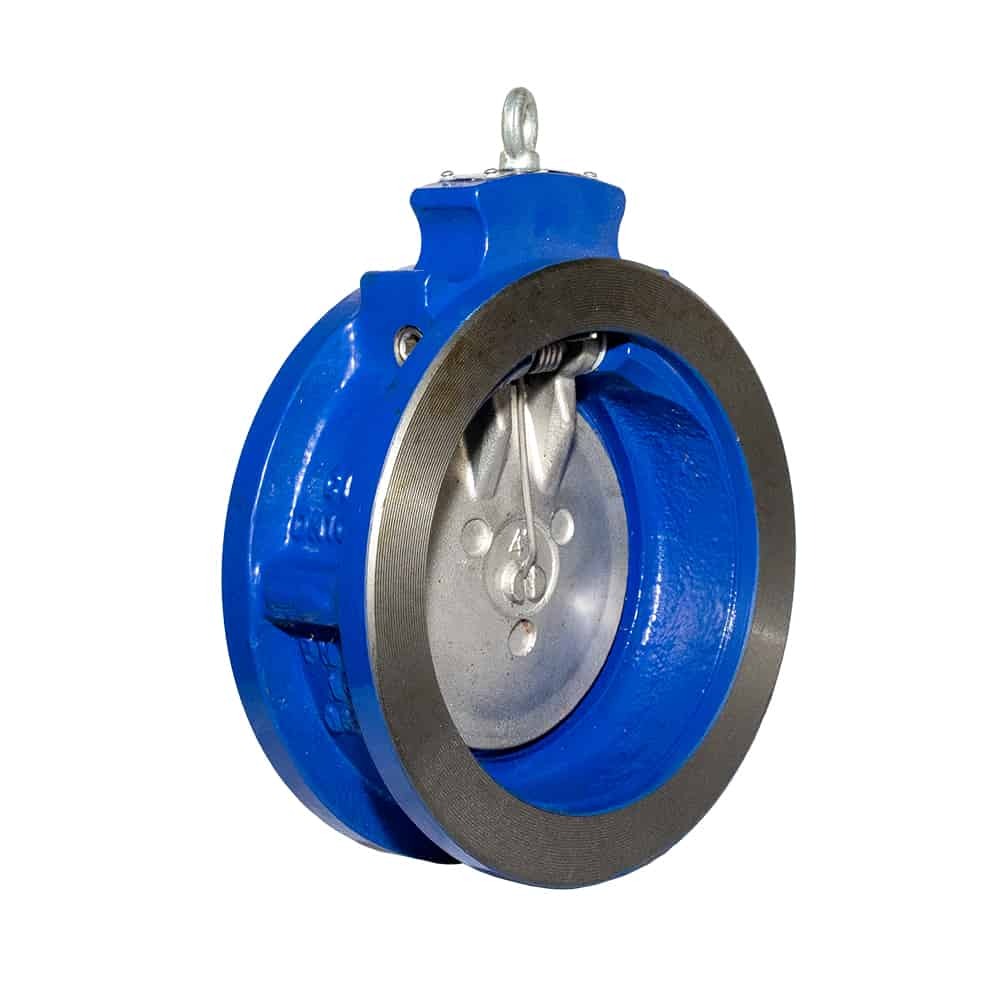

Wafer Check Valve

Wafer check valves are another type of check valve designed to allow fluid flow in only one direction. One of the key advantages of check valves is their ability to automatically prevent reverse flow when pressure differences change.

Wafer check valves feature a compact and thin design with a swinging disc as the main component. These valves are ideal for installations in tight spaces where accurate and efficient valve design is essential. At Suraj Steelmet, we ensure precision manufacturing and proper inspection before releasing the final consignment.

Design Standard	DIN EN 558-2 / API 594
Features	Single Disc Check Valve, Dual Plate Check Valve, Wafer Type Design
Testing Standard	API 598
Pressure Rating	150# to 300#
Size	½" to 4" – Single Disc \| 2" to 24" – Dual Plate
MOC	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Automatic

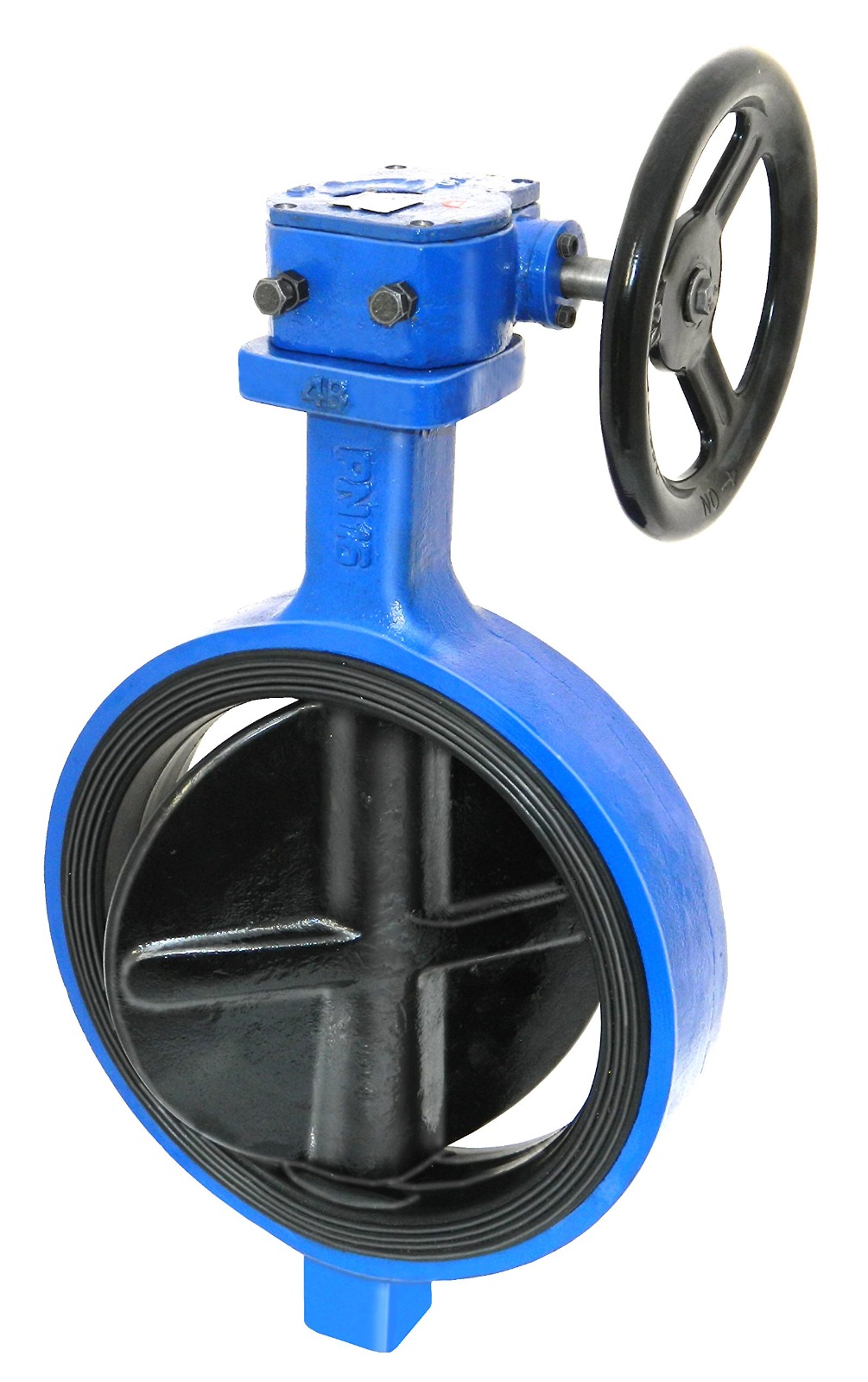

Butterfly Valve

Butterfly valves are compact, lightweight, and quick-operating valves used in a variety of industrial applications. These metal valves are widely used in petrochemical and oil industries due to their efficient performance and simple operating mechanism.

They are particularly suitable for fire-sensitive industries because of their lightweight and fire-safe characteristics. Due to their compact size, butterfly valves are ideal for installations where space is limited. At Suraj Steelmet, we strictly follow the required specifications to deliver reliable and high-performance butterfly valves.

Design Standard	AWWA C 504, API 609 Cat A
Features	Resilient Seat, Replaceable Seat
Testing Standard	API 598
Pressure Rating	PN 10 / PN 16
Size	2" to 24" Wafer Ends / Semi Lug
MOC	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Manual / Pneumatic / Electrical

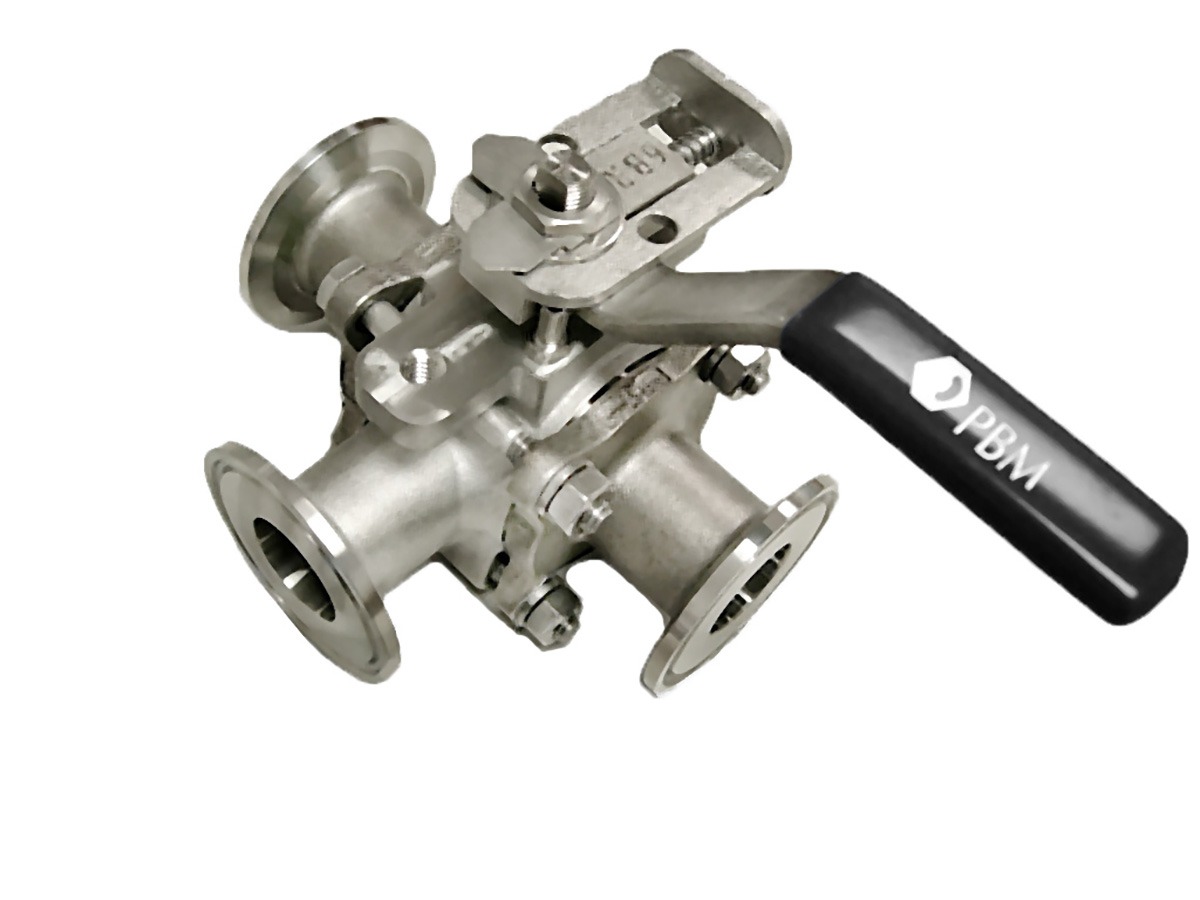

Multi Port Ball Valve (3-Way / 4-Way)

Multi-port ball valves provide excellent design flexibility as they can accommodate multiple flow paths through a single valve body. These valves are commonly used in systems where flow direction needs to be diverted or mixed efficiently.

Four-seat design configurations offer better balance compared to standard three-seat ball valves. With a simple handle repositioning, the flow pattern can be easily changed, making maintenance and system adjustments convenient. These compact one-piece valves can replace multiple conventional valves, making piping systems more efficient and cost-effective.

Design Standard	BS EN 17292
Bore / Port	Full Bore / Reduced Bore
Features	90°, 120°, 180° Handle Rotation, L-Type, T-Type, Protected Seat Ring Design
Testing Standard	BS EN 12266
Pressure Rating	150# to 300#
Size	½” to 2” Screwed / Socket Weld \| ½” to 10” Flanged / Butt Weld
MOC	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Manual / Pneumatic / Electrical

Flush Bottom Valve

Flush bottom valves are specially designed valves used for draining or flushing unwanted materials from tanks and vessels. These valves help maintain clean and efficient operations in industrial processing systems.

They are available in a variety of sizes and material grades to suit different industrial flushing requirements. At Suraj Steelmet, we maintain an inventory of standard-sized flush bottom valves for immediate supply, while custom specifications can also be manufactured as per client needs.

Application	Opening in the Tank / Opening in the Valve
Design Standard	Exporter Standard
Features	Y-Type and Ball Type Design
Testing Standard	API 598
Pressure Rating	150# to 300#
Size	½” to 8” Flanged Ends
MOC	Carbon Steel / Stainless Steel / Alloy Steel
Operation	Manual / Pneumatic / Electrical

Looking for High-Quality Valves?

We supply a wide range of industrial valves including ball valves, gate valves, globe valves, check valves, butterfly valves, and specialty valves manufactured to international standards. Contact our team today for specifications, availability, and competitive quotations.
