Threaded Blind Flanges

Threaded Blind Flanges are designed to close the end of piping systems using threaded connections, eliminating the need for welding while providing secure sealing for low to medium pressure applications.

Product Overview

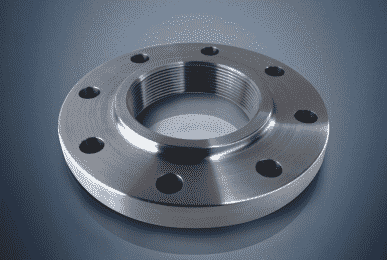

Threaded Flanges

Shatrunjay Special Alloy is acknowledged as a manufacturer, exporter, and supplier of Threaded Flanges and Stainless Steel Flanges (Grades 304, 304L, 316, 316L) available in a wide variety of grades, materials, and finishes in both metric and inch sizes.

These Threaded Flanges are manufactured in various materials including Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel, Inconel, Monel, Hastelloy, and Copper Nickel. They are supplied across India and Asia and conform to standard industrial specifications.

Threaded flanges are widely used in low-pressure piping systems since they do not require welding for installation. They are similar to slip-on flanges but feature internal threads in the bore that allow them to be easily assembled with pipes that have external threads.

Also known as screwed flanges, threaded flanges provide a convenient solution for systems where welding is not suitable or where disassembly may be required for maintenance and inspection.

No welding required for installation
Suitable for low pressure piping systems
Internally threaded bore for easy pipe connection
Available in carbon steel, stainless steel & alloy materials
Ideal for systems requiring frequent maintenance

Threaded Flange Production Range

Size

1/2″ (15 NB) to 48″ (1200 NB)

Standards

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings

Class 150, Class 300, Class 400, Class 600, Class 900, Class 1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.

Carbon Steel Threaded Flanges

ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516 Gr 60, 65, 70, Steel RST37.2, C22.8

Stainless Steel Threaded Flanges

ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316Ti, F310, F321, F904L

Alloy Steel Threaded Flanges

ASTM A182 F1, F5, F9, F11, F22, F91

Special Alloy Threaded Flanges

Duplex Steel, Super Duplex Steel, Nickel Alloys

Flange Face Type

Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating / Surface Treatment

Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold Dip Galvanized, Hot Dip Galvanized

Value Added Services

CNC Machining, Customised Flanges

Diameter

1/2″ to 24″

Threaded Flange Dimensions

Available as per standard dimensional specifications.

Applications

Threaded Flanges are commonly used in low-pressure piping systems where welding is not preferred and easy installation or disassembly is required.

Oil & Gas Low Pressure Pipeline Systems

Petrochemical Processing Plants

Water Supply & Treatment Systems

Compressed Air & Utility Pipelines

Chemical Processing Industries

Industrial Maintenance & Retrofit Projects

Threaded Flange Dimensions

150 LBS

Swipe → to view full table

Drilling
Nominal Bore	Dia. (D)	Thick. (E)	Dia. (F)	Dia. (B)	Height (H)	Nbr	Holes	Dia. (C)
1/2"	90	9.6	35.05	30	14	4	15.87	60.3
3/4"	100	11.2	42.92	38	14	4	15.87	69.9
1"	110	12.7	50.80	49	16	4	15.87	79.4
1 1/4"	115	14.3	63.50	59	19	4	15.87	88.9
1 1/2"	125	15.9	73.15	65	21	4	15.87	98.4
2"	150	17.5	91.94	78	24	4	19.05	120.7
2 1/2"	180	20.7	104.65	90	27	4	19.05	139.7
3"	190	22.3	127.00	108	29	4	19.05	152.4
3 1/2"	215	22.3	139.70	122	30	8	19.05	177.8
4"	230	22.3	157.22	135	32	8	19.05	190.5
5"	255	22.3	185.67	164	35	8	22.22	215.9
6"	280	23.9	215.90	192	38	8	22.22	241.3
8"	345	27.0	269.75	246	43	8	22.22	298.5
10"	405	28.6	323.85	305	48	12	25.40	362.0
12"	485	30.2	381.00	365	54	12	25.40	431.8
14"	535	33.4	412.75	400	56	12	28.57	476.3
16"	595	35.0	469.90	457	62	16	28.57	539.8
18"	635	38.1	533.40	505	67	16	31.75	577.9
20"	700	41.3	584.20	559	71	20	31.75	635.0
24"	815	46.1	692.15	663	81	20	34.92	749.3
